From classical to quantum regime of topological surface states via defect engineering
by Maryam Salehi, Xiong Yao, Seongshik Oh
This is not the latest submitted version.
This Submission thread is now published as
Submission summary
| Authors (as registered SciPost users): | Seongshik Oh · Xiong Yao |
| Submission information | |
|---|---|
| Preprint Link: | https://arxiv.org/abs/2110.14071v1 (pdf) |
| Date submitted: | 2021-10-28 05:08 |
| Submitted by: | Yao, Xiong |
| Submitted to: | SciPost Physics Lecture Notes |
| Ontological classification | |
|---|---|
| Academic field: | Physics |
| Specialties: |
|
| Approach: | Experimental |
Abstract
Since the notion of topological insulator (TI) was envisioned in late 2000s, topology has become a new paradigm in condensed matter physics. Realization of topology as a generic property of materials has led to numerous predictions of topological effects. Although most of the classical topological effects, directly resulting from the presence of the spin-momentum-locked topological surface states (TSS), were experimentally confirmed soon after the theoretical prediction of TIs, many topological quantum effects remained elusive for a long while. It turns out that native defects, particularly interfacial defects, have been the main culprit behind this impasse. Even after quantum regime is achieved for the bulk states, TSS still tends to remain in the classical regime due to high density of interfacial defects, which frequently donate mobile carriers due to the very nature of the topologically-protected surface states. However, with several defect engineering schemes that suppress these effects, a series of topological quantum effects have emerged including quantum anomalous Hall effect, quantum Hall effect, quantized Faraday/Kerr rotations, topological quantum phase transitions, axion insulating state, zeroth-Landau level state, etc. Here, we review how these defect engineering schemes have allowed topological surface states to pull out of the murky classical regime and reveal their elusive quantum signatures, over the past decade.
Current status:
Reports on this Submission
Report #1 by Anonymous (Referee 1) on 2022-3-1 (Invited Report)
- Cite as: Anonymous, Report on arXiv:2110.14071v1, delivered 2022-03-01, doi: 10.21468/SciPost.Report.4591
Strengths
Very important topic written by the leading group in this topic
Comprehensive review concentrating on almost all aspects of thin film preparation of different kinds of topological materials
Presentation of fundamental problems and their resolution
Weaknesses
Discussion on how band banding effects are relevant is confusing. The discussion on p. 12, Sec. III is confusing. Its not clear precisely the considerations that go into determine the flat band condition for instance. For instance, the logic leading to the conclusions in the sentence "If we calculate ππ π for Bi2Se3 with its conduction band minimum at almost 200 meV above the Dirac..." is not clear. (Top . 13) How is it this density gives the flat band condition.
There is no discussion of the preparation of thin films of Weyl semimetals. There were notable theoretical predictions, but no efforts that I am aware of. Some discussion on these possibilities would be appropriate in the overview about future directions.
Report
Excellent review. As far as I know no other reports like it. Should be published after small changes.
Requested changes
See above.
Author: Xiong Yao on 2022-04-14 [id 2384]
(in reply to Report 1 on 2022-03-01)We would like to thank the referee for emphasizing the significance of our review paper, and for recommending publication after a minor revision.
We also would like to thank the referee for mentioning the discussion on band bending effects.

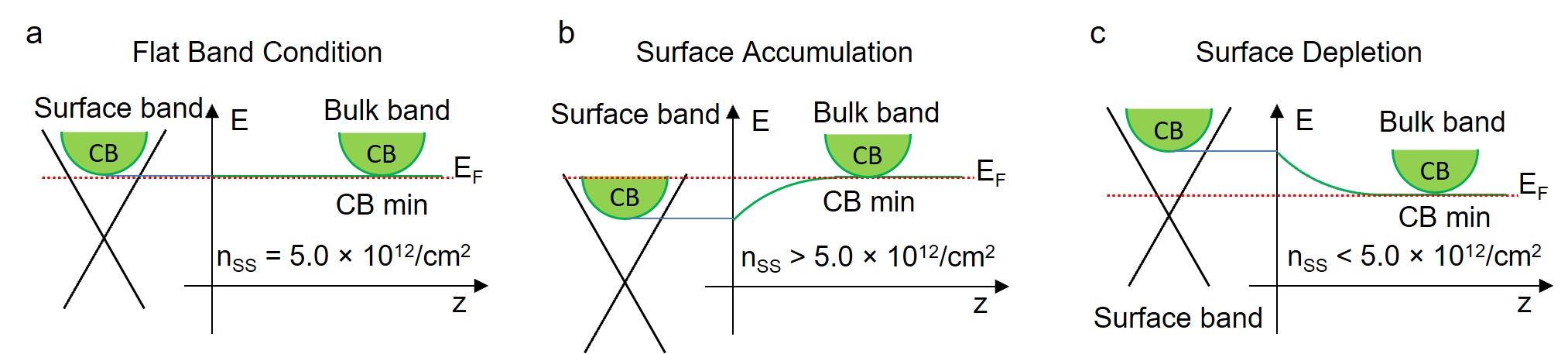

The flat band condition can be understood from the attached Figure 1. Given that the Mott criterion fixes $E_F$ to be at the conduction band minimum (confirmed by previous report) and knowing the surface state carrier density, together these fix the band bending as follows. First, assume that at the surface $E_F$ barely touches the CB minimum. Then assuming a Fermi velocity (4.0 *$10^5$ m/s) and the energy of the CB minimum relative to the Dirac point (210 meV), the surface carrier density can be calculated for one surface to be $n_{SS}$=5.0*$10^{12}$/$cm^2$ by the formula given on Page 12 and 13. Since EF at the surface and in the bulk is at the CB minimum, the bands must be flat, and band bending is negligible (see attached Figure 1). Therefore, $n_{SS}$=5.0*$10^{12}$/$cm^2$ gives the flat band condition. Either a higher or lower carrier density would give rise to an accumulation or depletion of carriers and band bending near the surface.
Due to limitations of space and scope, we are not able to extend all the details about band bending effects in topological insulators in this paper. These details about the band bending effects are included in the cited reference 84 "Matthew Brahlek et.al, Solid State Communications, 215β216, 54-62 (2015)", which is a review paper previously published by our group.
We agree with the referee that thin film growth of Weyl semimetals is important to the quantum materials community. However, the topic of the current review paper is topological insulators rather than semimetals. Discussion on Weyl semimetals are beyond the scope of this paper and should be included in another separate review paper.
